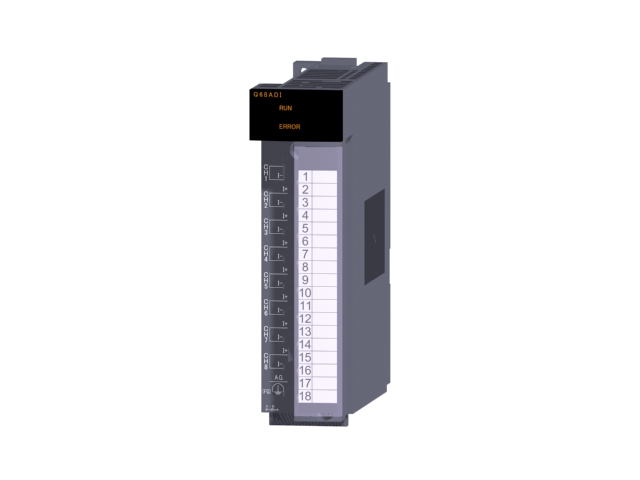

Q68ADI | MITSUBISHI Current input analog module Q68ADI
MITSUBISHI Q68ADI Manual And Instructions
Q68ADI datasheetPDF datasheet
Q68ADI datasheetPDF datasheet
MITSUBISHI Q68ADI Product information and technical parameters：
Brand: MITSUBISHI
Name: Current input analog module
Model: Q68ADI
8 channel.
Input: DC0~20mA.
Output (resolution): 0~4000; -4000~4000; 0~12000; -12000~12000; 0~16000; -16000~16000.
Conversion speed: 80 s/1 channel.
18 point terminal station.
