Q55BL | MITSUBISHI Large scale extended substrate Q55BL
MITSUBISHI Q55BL Manual And Instructions
Q55BL datasheetPDF datasheet
Q55BL datasheetPDF datasheet
Q55BL User's Manual
MITSUBISHI Q55BL Product information and technical parameters：
Brand: MITSUBISHI

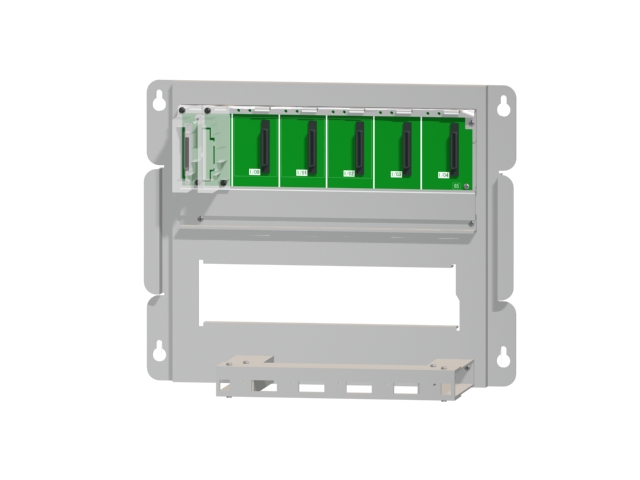

Name: Large scale extended substrate
Model: Q55BL
5 slots.
No need for power.
Used to install large Q series modules.
Reduce system downtime recovery time.
With a simple operation, you can back up all the data in the CPU to the memory card.
Through regular backup, can be the latest parameters, procedures, etc. to save the storage card.
In the event of a CPU failure, after the replacement of CPU, can be a simple operation,
Restore the system by using the data storage card in advance.
Therefore, it is not necessary to spend time to manage the backup data, but also can shorten the recovery time of the system shutdown.
Wider application range, more advanced.
Leading in the era of the Q series CPU products.
Q series CPU products a wide range of applications,
Provide programmable controller, process, redundancy, C language, movement, manipulator, CNC all kinds of CPU,
In order to meet the needs of various control.
Through the multi CPU configuration, can be based on the use of the scale, purpose,
Construction of the best system to meet the requirements of all kinds of control.
In addition, the high reliability system can be constructed by the redundant system,
Even if a fault occurs, the system can continue to run.
