LK Automation Limited
Brand:
MITSUBISHI

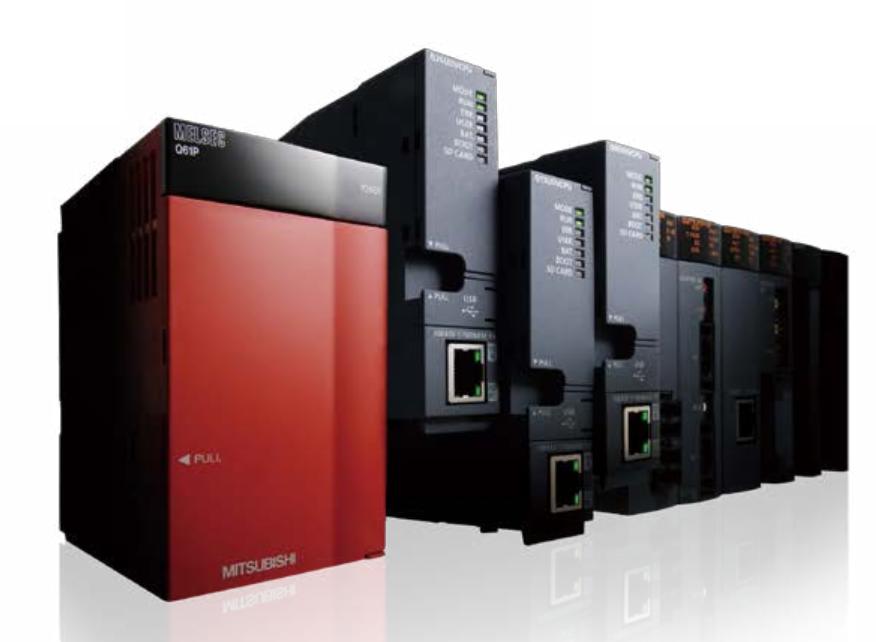

Q04UDVCPU | MITSUBISHI General high speed CPU Q04UDVCPU
MITSUBISHI Q04UDVCPU Manual And Instructions
Q04UDVCPU datasheetPDF datasheet
Q04UDVCPU datasheetPDF datasheet
Q04UDVCPU Special InstructionsStrctured Programming Manual
Q04UDVCPU Application FunctionsStrctured Programming Manual
Q04UDVCPU Common InstructionsStrctured Programming Manual
Q04UDVCPU FundamentalsStrctured Programming Manual
Q04UDVCPU Multiple CPU SystemUser's Manual
Q04UDVCPU Function Explanation, Program FundamentalsUser's Manual
Q04UDVCPU Hardware Design, Maintenance and InspectionUser's Manual
Q04UDVCPU Structured TextProgramming Manual
Q04UDVCPU MELSAP-LProgramming Manual
Q04UDVCPU SFCProgramming Manual
Q04UDVCPU PID Control InstructionsProgramming Manual
Q04UDVCPU Common Instructions 1/2Programming Manual
Q04UDVCPU Structured Text(ST)Programming Guide Book
MITSUBISHI Q04UDVCPU Product information and technical parameters：
Brand: MITSUBISHI
Name: General high speed CPU
Model: Q04UDVCPU
Input / output points: 4096 points.
Input / output soft element points: 8192.
Program capacity: 40K step.
Basic operation speed (LD): 1.9ns.
Program memory capacity: 160KB.
Peripheral device connection port: USB, Ethernet (communication support function).
Memory card I/F:SD memory card, extended SRAM card.
Convenient processing of large capacity data.
In the past can not achieve the standard RAM and SRAM card file register area of continuous access,
The boundary of each area should be considered in programming.
The SRAM 8MB extension card is installed in the high speed universal QCPU,
Standard RAM can be used as a continuous file register,
Capacity up to 4736K words, thus simplifying the programming.
Thus, even if the memory space of the soft element is insufficient,
Can also be installed by the expansion of SRAM card, easy to extend the file register area.
The address register is extended to 32 bits, which can be programmed to go beyond the traditional 32K word,
And to achieve the extension to the file register to all regions of the file register.
In addition, the processing speed of the index modification plays an important role in the efficient operation of structured data (array),
The speed has been improved.
When the index is used to modify the program repeatedly (e.g. from FOR to NEXT), the scan time can be reduced.
Support USB and RS232.
Support installed memory card.
Providing high speed communication between multiple CPU.
Shorten the fixed scan interrupt time, high precision device.
The minimum interval of the fixed period interrupt program is reduced to 100 s.
The high speed signal can be accurately obtained, which makes the contribution to the higher precision of the device.
High speed and high precision machine control by multi CPU.
By parallel processing of the linear and multi CPU high-speed communication (cycle 0.88ms) of the parallel control program, the high speed control.
Multi CPU high speed communication cycle and motion control synchronization, so it can achieve the maximization of computing efficiency.
In addition, the latest movement control CPU in performance is 2 times the previous model,
To ensure high speed and high accuracy of the machine control.
...More relevant models >>>>
Q04UDVCPU datasheetPDF datasheet
Q04UDVCPU datasheetPDF datasheet
Q04UDVCPU Special InstructionsStrctured Programming Manual
Q04UDVCPU Application FunctionsStrctured Programming Manual
Q04UDVCPU Common InstructionsStrctured Programming Manual
Q04UDVCPU FundamentalsStrctured Programming Manual
Q04UDVCPU Multiple CPU SystemUser's Manual
Q04UDVCPU Function Explanation, Program FundamentalsUser's Manual
Q04UDVCPU Hardware Design, Maintenance and InspectionUser's Manual
Q04UDVCPU Structured TextProgramming Manual
Q04UDVCPU MELSAP-LProgramming Manual
Q04UDVCPU SFCProgramming Manual
Q04UDVCPU PID Control InstructionsProgramming Manual
Q04UDVCPU Common Instructions 1/2Programming Manual
Q04UDVCPU Structured Text(ST)Programming Guide Book
MITSUBISHI Q04UDVCPU Product information and technical parameters：
Brand: MITSUBISHI
Name: General high speed CPU
Model: Q04UDVCPU
Input / output points: 4096 points.
Input / output soft element points: 8192.
Program capacity: 40K step.
Basic operation speed (LD): 1.9ns.
Program memory capacity: 160KB.
Peripheral device connection port: USB, Ethernet (communication support function).
Memory card I/F:SD memory card, extended SRAM card.
Convenient processing of large capacity data.
In the past can not achieve the standard RAM and SRAM card file register area of continuous access,
The boundary of each area should be considered in programming.
The SRAM 8MB extension card is installed in the high speed universal QCPU,
Standard RAM can be used as a continuous file register,
Capacity up to 4736K words, thus simplifying the programming.
Thus, even if the memory space of the soft element is insufficient,
Can also be installed by the expansion of SRAM card, easy to extend the file register area.
The address register is extended to 32 bits, which can be programmed to go beyond the traditional 32K word,
And to achieve the extension to the file register to all regions of the file register.
In addition, the processing speed of the index modification plays an important role in the efficient operation of structured data (array),
The speed has been improved.
When the index is used to modify the program repeatedly (e.g. from FOR to NEXT), the scan time can be reduced.
Support USB and RS232.
Support installed memory card.
Providing high speed communication between multiple CPU.
Shorten the fixed scan interrupt time, high precision device.
The minimum interval of the fixed period interrupt program is reduced to 100 s.
The high speed signal can be accurately obtained, which makes the contribution to the higher precision of the device.
High speed and high precision machine control by multi CPU.
By parallel processing of the linear and multi CPU high-speed communication (cycle 0.88ms) of the parallel control program, the high speed control.
Multi CPU high speed communication cycle and motion control synchronization, so it can achieve the maximization of computing efficiency.
In addition, the latest movement control CPU in performance is 2 times the previous model,
To ensure high speed and high accuracy of the machine control.
For common cathode input module and drain type output module (standard type).Input points: 16 points.
Input voltage and current: 6mA DC24V.
Response time: 0/0.1/0.2/0.4/0.6/1ms.
16 point /1 a public side.
Common cathode.
18 point terminal station.
Continue to go beyond, to climb the peak of Q series MITSUBISHI Q04UDVCPU.
Strengthen security function.
Can be set up to 32 characters of the file password Q04UDVCPU
In addition to the English letters, numbers, but also the use of special characters,
To further enhance the security of the password.
In addition, only pre registered devices are allowed to access CPU,
To intercept unauthorized access to unauthorized users.
Therefore, it is important to prevent the outflow of important program assets and protect intellectual property rights MITSUBISHI Q04UDVCPU.
Easy connection programming tool via ethernet.
Programming tools (Works2 GX, Developer GX) and CPU direct connection (1 to 1),
No need to carry out the IP address settings. And there is no need to select the cable, the straight line and the cross line can be used.
Therefore, this connection method and the use of USB, can easily communicate with the CPU,
Even the operators are not familiar with the network settings can easily establish a connection MITSUBISHI Q04UDVCPU.
A variety of modules with excellent performance,
Meet the needs of various control from analog to location.
Q series module products include a variety of types of I/O, analog and positioning function module.
Can fully meet the switch, sensor, such as the input and output, temperature, weight, flow and motor, drive control,
As well as the requirements of high-precision control of the positioning of the industry, the control needs of various fields.
Can also be used in combination with the CPU module to achieve appropriate control.Input: 4 channels.
Thermocouple (C1602~1995 JIS).
Micro voltage (-100mV~100mV).
Conversion speed: (sampling period x3) /1 channel.
18 point terminal station.
Most suitable for process control of isolated analog modules.
Temperature data can be collected by connecting thermocouple / thermal resistance.
Products can choose multi-channel (8 channel) input type and channel isolation type.
Customers can choose the most suitable model according to the intended use.
Auto backup key data
Save the program and parameter files automatically to the program memory (ROM Flash) without using the backup battery,
To prevent the loss of the program and the parameters due to forgetting to replace the battery.
In addition, the soft component data and other important data can be backed up to the standard ROM,
In order to avoid during the long holiday and other planned downtime,
The data is lost due to battery depletion.
The next time the power is turned on, the backup data will be automatically restored.
Reduce system downtime recovery time.
With a simple operation, you can back up all the data in the CPU to the memoryy card Q04UDVCPU.
Through regular backup, can be the latest parameters, procedures, etc. to save the storage card.
In the event of a CPU failure, after the replacement of CPU, can be a simple operation,
Restore the system by using the data storage ccard in advance Q04UDVCPU.
Therefore, it is not necessary to spend time to manage the backup data, but also can shorten the recovery time of the system shutdown.
Input voltage and current: 6mA DC24V.
Response time: 0/0.1/0.2/0.4/0.6/1ms.
16 point /1 a public side.
Common cathode.
18 point terminal station.
Continue to go beyond, to climb the peak of Q series MITSUBISHI Q04UDVCPU.
Strengthen security function.
Can be set up to 32 characters of the file password Q04UDVCPU
In addition to the English letters, numbers, but also the use of special characters,
To further enhance the security of the password.
In addition, only pre registered devices are allowed to access CPU,
To intercept unauthorized access to unauthorized users.
Therefore, it is important to prevent the outflow of important program assets and protect intellectual property rights MITSUBISHI Q04UDVCPU.
Easy connection programming tool via ethernet.
Programming tools (Works2 GX, Developer GX) and CPU direct connection (1 to 1),
No need to carry out the IP address settings. And there is no need to select the cable, the straight line and the cross line can be used.
Therefore, this connection method and the use of USB, can easily communicate with the CPU,
Even the operators are not familiar with the network settings can easily establish a connection MITSUBISHI Q04UDVCPU.
A variety of modules with excellent performance,
Meet the needs of various control from analog to location.
Q series module products include a variety of types of I/O, analog and positioning function module.
Can fully meet the switch, sensor, such as the input and output, temperature, weight, flow and motor, drive control,
As well as the requirements of high-precision control of the positioning of the industry, the control needs of various fields.
Can also be used in combination with the CPU module to achieve appropriate control.Input: 4 channels.
Thermocouple (C1602~1995 JIS).
Micro voltage (-100mV~100mV).
Conversion speed: (sampling period x3) /1 channel.
18 point terminal station.
Most suitable for process control of isolated analog modules.
Temperature data can be collected by connecting thermocouple / thermal resistance.
Products can choose multi-channel (8 channel) input type and channel isolation type.
Customers can choose the most suitable model according to the intended use.
Auto backup key data
Save the program and parameter files automatically to the program memory (ROM Flash) without using the backup battery,
To prevent the loss of the program and the parameters due to forgetting to replace the battery.
In addition, the soft component data and other important data can be backed up to the standard ROM,
In order to avoid during the long holiday and other planned downtime,
The data is lost due to battery depletion.
The next time the power is turned on, the backup data will be automatically restored.
Reduce system downtime recovery time.
With a simple operation, you can back up all the data in the CPU to the memoryy card Q04UDVCPU.
Through regular backup, can be the latest parameters, procedures, etc. to save the storage card.
In the event of a CPU failure, after the replacement of CPU, can be a simple operation,
Restore the system by using the data storage ccard in advance Q04UDVCPU.
Therefore, it is not necessary to spend time to manage the backup data, but also can shorten the recovery time of the system shutdown.
