Max input / output points: 24 points.
Power supply voltage: DC24V.
Input points: 14 points.
Output points: 10 points.
Output type: relay.
Power consumption (W): 32.
Weight (kg):0.5.
Size (WxHxD) mm:90x90x75.
FX1N series is a very powerful micro PLC, can be extended to up to 128 I/O points,
And can increase the special function module or the expansion board MITSUBISHI FX2N-32SW.
Communication and data link function options make FX1N in the volume, communication and special function modules and other important applications is very perfect FX2N-32SW
A PLC unit can output 2 100KHz pulses at the same time,
PLC is equipped with 7 special positioning instructions,
Including zero return, absolute position readout, absolute or relative drive, and special pulse output control MITSUBISHI FX2N-32SW. Length: 55mm.
Function: connect GM-FX.
Corresponding models: FX2N-10GM, FX2N-20GM. Function: CPU module (internal service power supply).
Input and output points: 80 points.
Power supply capacity (DC5V power): 1100mA.
Power supply capacity (DC24V service power supply): 600mA.
Input / output mode: DC input (drain / source) / transistor (drain).
Input points: 40 points MITSUBISHI FX2N-32SW.
Output points: 40 points.
The new expansion module is more convenient!
Pioneer products with advanced built-in functions and rich extensibility.
FX5U built-in analog, communication, high speed input and output,
By extending the board and adapter can be easily extended system.
In addition, through the high speed system bus,
Can maximize the role of the built-in intelligent functions of the expansion device.
Total input and output points: 8 points.
Output points: 8 points.
Output type: transistor output.
FX2N extension module.
The expansion module is an input and output expansion device of the power supply from the basic unit or the expansion unit,
Can choose the relay or crystal output models, to 8 points for the unit to connect.
Can be extended to FX3GA/FX3G, FX3GE, FX3GC, as well as FX3U, FX3UC series,
When connecting to FX3UC or FX3GC, you need FX2NC-CNV-IF or FX3UC-1PS-5V.
The number of connection points depends on the basic unit and the expansion unit.

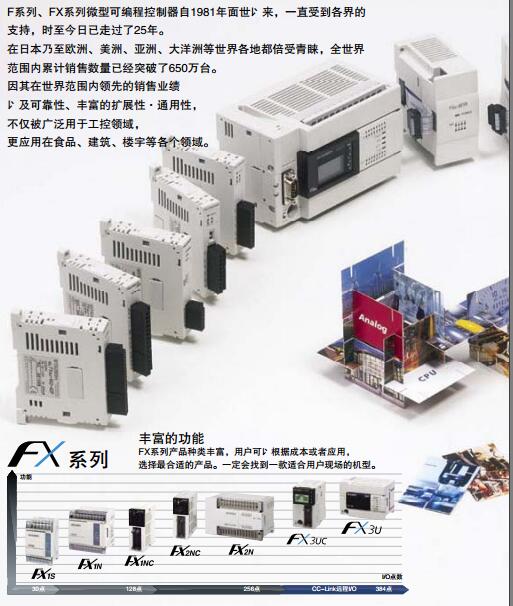

FX Series in the compact body built in superior performance, and strivve to operate simple FX2N-32SW.
In addition, rich options can meet the various needs of customers.
In the virtual factory will be rich in the function of a part of the introduction.
It is easy to control the analog quantity of the application.
Can bbe extended to all models in the FX series analog devices FX2N-32SW.
Function extension board, special adapter without programming can be used for communication.
