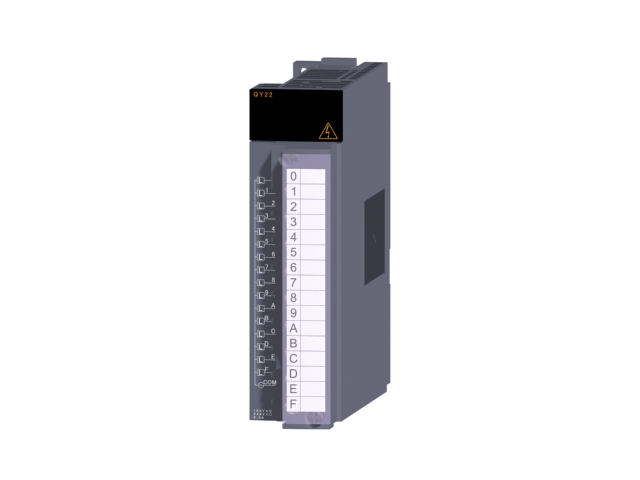

QY22 | MITSUBISHI Thyristor output module QY22
MITSUBISHI QY22 Manual And Instructions
QY22 datasheetPDF datasheet
QY22 datasheetPDF datasheet
QY22 User's Manual
MITSUBISHI QY22 Product information and technical parameters：
Brand: MITSUBISHI
Name: Thyristor output module
Model: QY22
Output points: 16 points.
Minimum load voltage and current: 25mA; AC24V<100mA/AC240V.
Leakage current: 1.5mA OFF (AC120V) 3mA (AC240V);
Response time: 1ms+0.5Hz.
16 points and 1 common ends.
18 point terminal station.
With the surge absorber.
Continue to go beyond, to climb the peak of Q series.
Strengthen security function.
Can be set up to 32 characters of the file password.
In addition to the English letters, numbers, but also the use of special characters,
To further enhance the security of the password.
In addition, only pre registered devices are allowed to access CPU,
To intercept unauthorized access to unauthorized users.
Therefore, it is important to prevent the outflow of important program assets and protect intellectual property rights.
A variety of modules with excellent performance,
Meet the needs of various control from analog to location.
Q series module products include a variety of types of I/O, analog and positioning function module.
Can fully meet the switch, sensor, such as the input and output, temperature, weight, flow and motor, drive control,
As well as the requirements of high-precision control of the positioning of the industry, the control needs of various fields.
Can also be used in combination with the CPU module to achieve appropriate control.
Easy connection programming tool via ethernet.
Programming tools (Works2 GX, Developer GX) and CPU direct connection (1 to 1),
No need to carry out the IP address settings. And there is no need to select the cable, the straight line and the cross line can be used.
Therefore, this connection method and the use of USB, can easily communicate with the CPU,
Even the operators are not familiar with the network settings can easily establish a connection.
