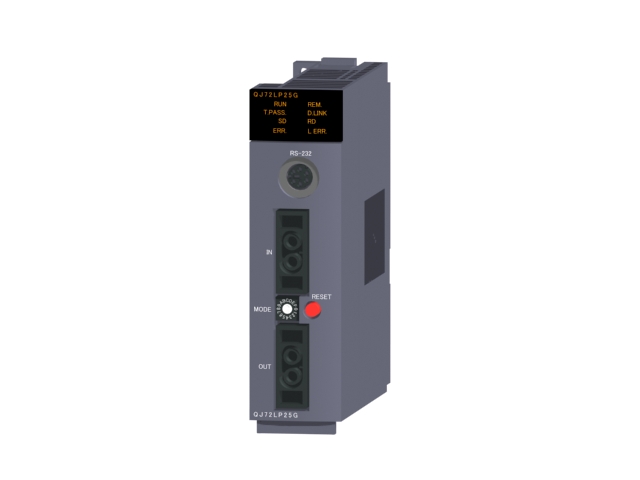

QJ72LP25G | MITSUBISHI Optical fiber loop (GI) module QJ72LP25G
MITSUBISHI QJ72LP25G Manual And Instructions
QJ72LP25G Remote I/O networkReference Manual
QJ72LP25G HardwareUser's Manual
MITSUBISHI QJ72LP25G Product information and technical parameters：
Brand: MITSUBISHI
Name: Optical fiber loop (GI) module
Model: QJ72LP25G
GI-50/125 optical cable.
Double ring.
Remote I/O net (remote master station).
MELSECNET/H network module capable of composing large scale flexible network system.
The MELSECNET/H network system includes the PLC network of the control station and the communication between the stations and the remote I/O network in the remote station remote I/O station.
Optical fiber loop system...... High speed communication of 10Mbps/25Mbps is realized.
The distance between stations, the length of the total cable length, strong anti-interference.
Coaxial bus system...... Using low cost coaxial cable, the network construction cost is lower than that of the optical fiber loop network.
Twisted pair bus system...... Combined with high performance price ratio network module and twisted pair cable,
The construction cost of network system is very low.
