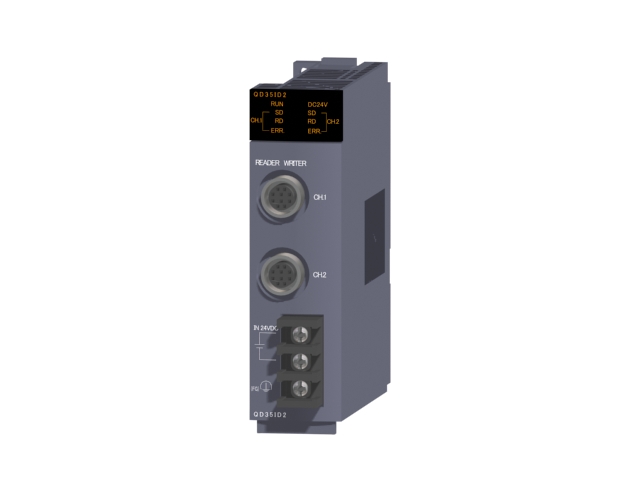

QD35ID2 | MITSUBISHI ID interface module QD35ID2

MITSUBISHI QD35ID2 Product information and technical parameters:
Brand: MITSUBISHI
Name: ID interface module
Model: QD35ID2
Connect to read and write 2Ch.
ID system interface module.
ID controller M-688-001/002 BIS can be installed directly to the Q series of substrates,
Control module for reading and writing ID tag data through a programmable logic controller.
The ladder diagram of M-688-002 BIS is compatible with QD35ID1/2.
2 antennas can be connected, and the parallel processing of the 2 channels can be simultaneously carried out.
Can use all ID tags in the M BIS series.
ID series /BIS system is an industrial automation ID system which can use the electromagnetic combination method to read and write data.
ID tag has a variety of sizes and storage capacity.

Master / local station sharing.
Corresponding Ver2 CC-Link.
Consistency of CC-Link to maintain loop transmission,
And the cycle of transmission and information (instantaneous transmission) communication separately, so as to ensure the timeliness of.
Even if the information reaches saturation, it will not affect the link scan time MITSUBISHI QD35ID2.
The QJ61BT11N module supports CC-Link version 1 and version 2, which can be used as a local station or master station module QD35ID2
I/O control in the first class of open field network module.
CC-Link based on reliable field bus technology,
Able to transmit large number of bits data (such as ON/OFF information) and word data (such as analog information).Output points: 16 points MITSUBISHI QD35ID2.
Output voltage and current: 24V/AC240V 2A/1; DC point; 8A/1 common end.
Response time: 12ms.
16 points / a common end.
18 point spring clip connection terminal.
Continue to go beyond, to climb the peak of Q series.
Strengthen security function.
Can be set up to 32 characters of the file password.
In addition to the English letters, numbers, but also the use of special characters,
To further enhance the security of the password MITSUBISHI QD35ID2.
In addition, only pre registered devices are allowed to access CPU,
To intercept unauthorized access to unauthorized users.
Therefore, it is important to prevent the outflow of important program assets and protect intellectual property rights.
A variety of modules with excellent performance,
Meet the needs of various control from analog to location.
Q series module products include a variety of types of I/O, analog and positioning function module.
Can fully meet the switch, sensor, such as the input and output, temperature, weight, flow and motor, drive control,
As well as the requirements of high-precision control of the positioning of the industry, the control needs of various fields.
Can also be used in combination with the CPU module to achieve appropriate control.
Easy connection programming tool via ethernet.
Programming toools (Works2 GX, Developer GX) and CPU direct connection (1 to 1),
No need to carry out the IP address settings QD35ID2. And there is no need to select the cable, the straight line and the cross line can be used.
Therefore, this connection method annd the use of USB, can easily communicate with the CPU,
Even the operators are not familiar with the network settings can easily establish a connection QD35ID2.
