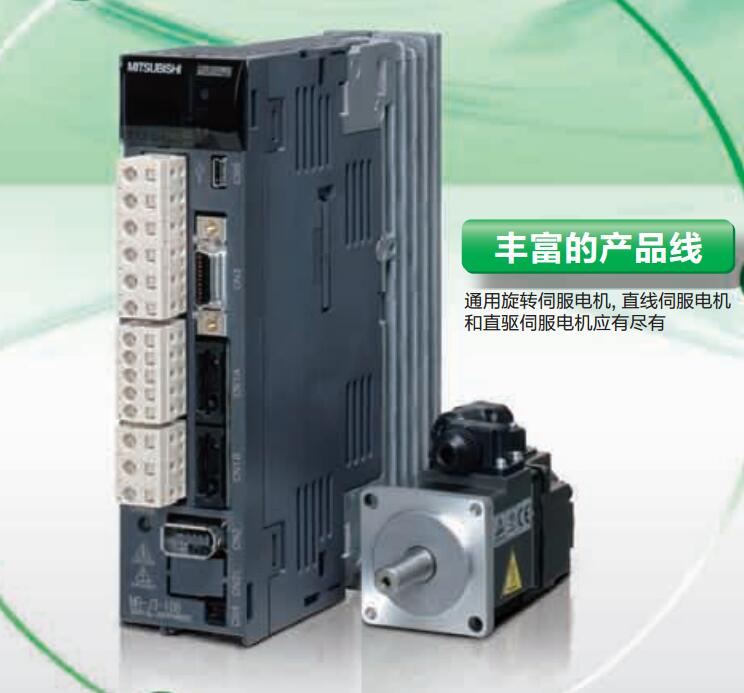

MR-J3-350BS4 | MITSUBISHI Integrated drive safety function driver MR-J3-350BS4
MITSUBISHI MR-J3-350BS4 Manual And Instructions
MR-J3-350BS4 datasheetPDF datasheet
MITSUBISHI MR-J3-350BS4 Product information and technical parameters：
Brand: MITSUBISHI
Name: Integrated drive safety function driver
Model: MR-J3-350BS4
MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 3.5kw.
Interface type: SSCNET type III fiber communication.
Special features: integrated driver security.
Power specification: three phase AC400V.
STO function as a security feature is added to the SSCNET III fiber communication type servo amplifier.
By using the STO function, the electromagnetic contactor used in the past to prevent the motor from accidentally starting is no longer needed.
SS1 functions can be realized by using the MR-J3-D05 security logic unit.
MR-J3-BS uses a full closed loop control system.
Compatibility with MR-J3-B.
MR-J3-BS installation, wiring and connectors are the same as the MR-J3-B, so do not change the existing connection will be easy to MR-J3-B
Change to MR-J3-BS.
Security functions are connected to the CN8 interface through an external security circuit to increase the MR-J3-BS driver security.
Compatible full closed loop control system.
MR-J3-BS has a full closed loop control system version.
