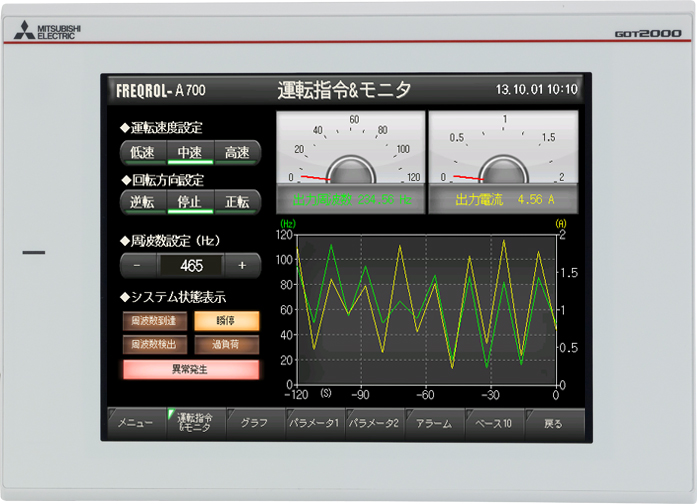

GT2710-VTWD | MITSUBISHI 10.4 inch touch screen GT2710-VTWD
MITSUBISHI GT2710-VTWD Manual And Instructions
GT2710-VTWD datasheetPDF datasheet
GT2710-VTWD MES Interface Function Manual
GT2710-VTWD Microcomputers, MODBUS/Fieldbus Products, PeripheralsConnection Manual
GT2710-VTWD Non-Mitsubishi Products 2Connection Manual
GT2710-VTWD Non-Mitsubishi Products 1Connection Manual
GT2710-VTWD Mitsubishi ProductsConnection Manual
GT2710-VTWD MonitorUser's Manual
GT2710-VTWD UtilityUser's Manual
GT2710-VTWD HardwareUser's Manual
GT2710-VTWD SAFETY PRECAUTIONS
GT2710-VTWD SAFETY PRECAUTIONS
MITSUBISHI GT2710-VTWD Product information and technical parameters：
Brand: MITSUBISHI
Name: 10.4 inch touch screen
Model: GT2710-VTWD
Function: high performance and low price in the middle end model.
Picture size: 10.4 inches.
Resolution: VGA.
Display: TFT color.
Panel color: white.
Power type: DC24V.
The highest level model with multi touch and gesture features.
Specification rich, design at ease.
GT27 standard supports SD memory card and standard equipped with Ethernet, RS-232, RS-422/485, host/device USB interface.
Even in the log, script, alarm, soft component data transmission, such as high load processing period, but also to achieve smooth operation of the screen.
In addition, also supports video, animation playback, video input and RGB input and output, can use all the features of GOT2000.
Can be programmed CPU and other procedures, parameters, such as data storage (backup) to the SD GOT memory card, USB memory.
When the programmable controller fails, batch write back (recovery) program.
1, the human body sensor
People will be able to automatically detect and display the picture.
2, USB interface: device USB (Mini-B USB)
Can connect to the computer to transfer data.
3, USB interface: host USB (USB-A)
GOT data can be transmitted through the USB memory or read log data and other data,
Can also be connected to the USB mouse, keyboard use.
4, the extension of the interface
Communication module and optional module can be installed.
5, Ethernet interface
Up to 4 different manufacturers can be connected to the FA machine.
6, RS-232 interface
Can connect all kinds of FA machine, bar code reader, serial printer.
7, RS-422/485 interface
Can be connected to a variety of FA machines, bar code reader.
8, SD memory card slot
Can save alarm and log data, such as a large number of data.
