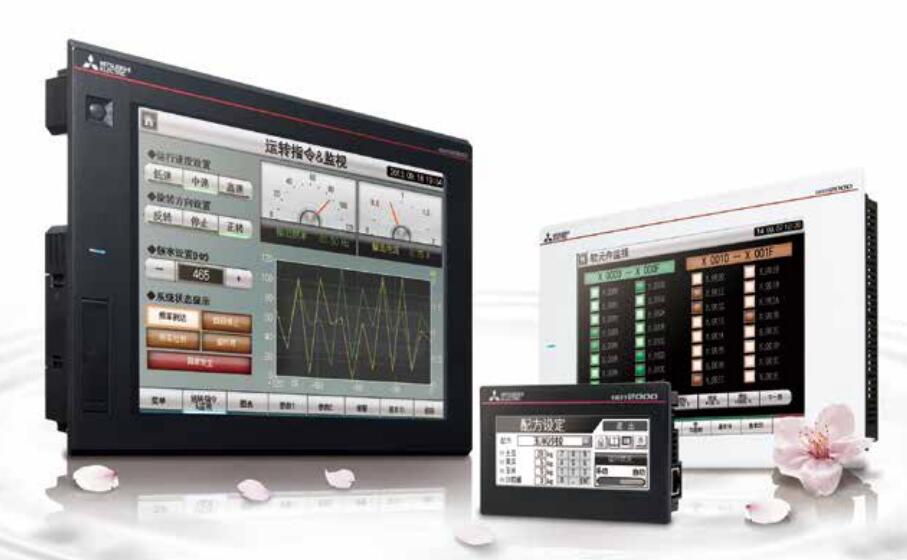

GT2310-VTBD | MITSUBISHI 10.4 inch touch screen GT2310-VTBD
MITSUBISHI GT2310-VTBD Manual And Instructions
GT2310-VTBD datasheetPDF datasheet
GT2310-VTBD MES Interface Function Manual
GT2310-VTBD Microcomputers, MODBUS/Fieldbus Products, PeripheralsConnection Manual
GT2310-VTBD Non-Mitsubishi Products 2Connection Manual
GT2310-VTBD Non-Mitsubishi Products 1Connection Manual
GT2310-VTBD Mitsubishi ProductsConnection Manual
GT2310-VTBD MonitorUser's Manual
GT2310-VTBD UtilityUser's Manual
GT2310-VTBD HardwareUser's Manual
MITSUBISHI GT2310-VTBD Product information and technical parameters：
Brand: MITSUBISHI
Name: 10.4 inch touch screen
Model: GT2310-VTBD
Features: high cost of second models.
Picture size: 10.4 inches.
Resolution: VGA.
Display: TFT color.
Panel color: black.
Power type: DC24V.
Specification rich, design at ease
GT23 standard supports SD memory card and standard equipped with Ethernet, RS-232, RS-422/485, host/device USB interface.
Support log, one to many connections, FA transparent transmission and other diverse FA machine related functions.
System configuration diagram shows in order to form the connection with the GOT programmable controller system,
Easily confirm module status. In addition, after touching each module,
Can start its corresponding expansion function, to facilitate system maintenance, shorten the time of failure.
1, simple design
In order to cope with the use of a variety of scenarios, to abandon all the nonsense of the decoration, the use of straight tone of the minimalist design.
2, plane body
Surface mining pure plane design, easy to clean. (USB interface at the back)
3, Ethernet interface
Up to 2 different manufacturers can be connected to the FA machine.
4, RS-232 interface
Can connect all kinds of FA machine, bar code reader, serial printer.
5, RS-422/485 interface
Can be connected to a variety of FA machines, bar code reader.
6, USB interface: device USB (Mini-B USB)
Can connect to the computer to transfer data.
7, USB interface: host USB (USB-A)
USB data can be transmitted through the USB memory or read log data, such as the GOT data, but also can be connected to the use of the mouse, keyboard.
8, SD memory card slot
Can save alarm and log data, such as a large number of data.
Can be collected through the GOT programmable controller, temperature regulator and other data, and to chart, list display.
Computer analysis can also be used to save the data. Even in the case of a power outage, the log data can be saved to the built-in SRAM.
