LK Automation Limited
Brand:
MITSUBISHI
FX3U-16MT/DSS | MITSUBISHI PLC FX3U-16MT/DSS
MITSUBISHI FX3U-16MT/DSS Manual And Instructions
FX3U-16MT/DSS datasheetPDF datasheet
FX3U-16MT/DSS HARDWARE MANUAL
FX3U-16MT/DSS Positioning Control EditionUSER'S MANUAL
FX3U-16MT/DSS Basic & Applied Instructions EditionPROGRAMMING MANUAL
FX3U-16MT/DSS Hardware EditionUSER'S MANUAL
FX3U-16MT/DSS MODBUS Serial Communication EditionUSER'S MANUAL
MITSUBISHI FX3U-16MT/DSS Product information and technical parameters：
Brand: MITSUBISHI
Name: PLC
Model: FX3U-16MT/DSS
Max input / output points: 16 points.
Power supply voltage: 24VDC.
Input points: 8 points.
Output points: 8 points.
Output type: Transistor (source).
Power consumption: 25W.
Weight (kg):0.6.
Size (WxHxD) mm:130x90x86.
Built in CPU, power supply, input and output. By using a rich variety of functional extension boards and special adapters,
Can achieve high precision control.
Based on the function of FX2N has been greatly strengthened and enhanced.
High speed operation.
Basic instructions: 0.065 s/ instruction.
Application instruction: 0.642 s/ instruction.
Large capacity memory.
Built in program memory 64000 steps.
Flash memory cartridge with program transfer function.
Authentication。
Corresponding EN and UL/cUL authentication.
Faster and more efficient. Support high speed control and network communication, and have the function of data recording.

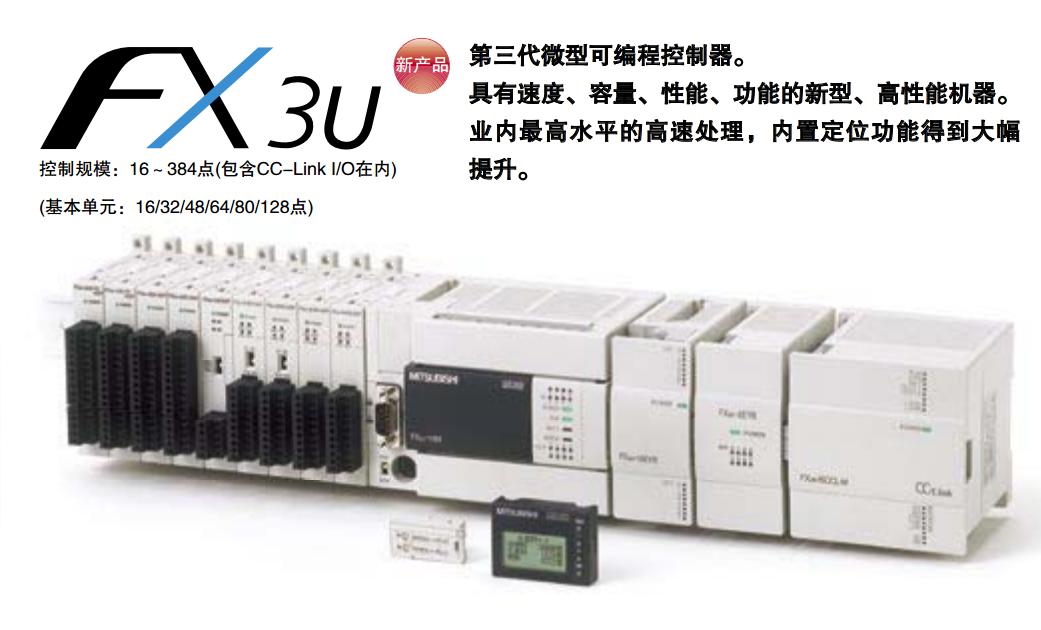

High speed, large capacity, multi-function high-end machine.
FX3U supports high speed processing, CC-Link communication, network communication, analog control and advanced positioning system.
Connected to the CC-Link, including the remote I/O, the maximum input and output control points up to 384 points,
Can correspond to a variety of field needs, the use of its scalability and flexibility to expand the scope of application of the control system.
Third generation high function micro programmable controller.
High speed, high efficiency, high performance, large capacity, and new features.
Built in high speed processing and positioning.
Control points: maximum 256 points.
Use CC-Link remote I/O for 384 points.
