Output points: 16 points.
Transistor output type. Input and output points: 16 points.
Input points: 8 points.
Input specification: leakage type.
Output points: 8 points.
Output form: transistor output (drain).
Power consumption: 6W.
Weight: 0.2KG.
Outline dimension: 34x90x87mm.
Hard and compact type third generation micro programmable controller MITSUBISHI FX2N-GM-5EC.
Connector type input and output type provincial connection FX2N-GM-5EC
Greatly strengthened the industry''s highest level of high-speed processing and positioning and other built-in features.
High cost of the province space models.
FX3UC in the province of space, the province also greatly strengthened the connection of high-speed processing and positioning and other built-in features MITSUBISHI FX2N-GM-5EC.
The host is built in DC24V power supply, the connector input and output form of the transistor output.
In addition, according to the product mix can also achieve network communications, analog control, data collection and other functions.

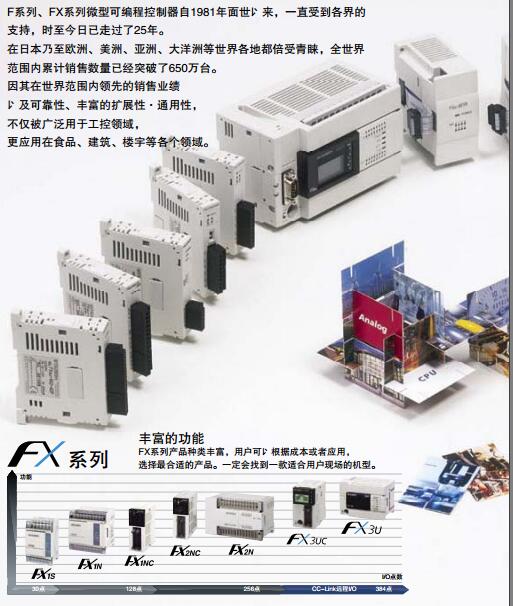

Third generation high function micro programmable controller.
Connector type can save space, province wiring.
Built in high speed processing and positioning MITSUBISHI FX2N-GM-5EC.
Ultra small size, control points to 256 points.
Construction of CC-Link remote I/O 384 points. Max input / output points: 64 points.
Power supply voltage: 24VDC.
Input points: 32 points.
Output points: 32 points.
Output type: relay.
Power consumption: 40W.
Weight (kg):1.0.
Size (WxHxD) mm:220x90x86.
Built in CPU, power supply, input and output. By using a rich variety of functional extension boards and special adapters,
Can achieve high precision control.
Based on the function of FX2N has been greatly strengthened and enhanced.
High speed operation.
Basic instructions: 0.065 s/ instruction.
Application instruction: 0.642 s/ instruction.
Large capacity memory.
Built in program memory 64000 steps.
Flash memory cartridge with program transfer function.
Authentication。
Corresponding EN and UL/cUL authentication.
Faster and more efficient. Support high speed control and network communication, and have the function of data recording.
High speed, large capacity, multi-function high-end machine.
FX3U supports high speed processing, CC-Link communication, network communication, analog control and advanced positioning system.
Connected to the CC-Link, including the remote I/O, the maximum input and output control points up to 384 points,
Can correspond to a variiety of field needs, the use of its scalability and flexibility to expand the scope of application of the control system FX2N-GM-5EC.
Third generation high function micro programmable controller.
High speed, high efficiency, high performance, large capacity, and new features FX2N-GM-5EC.
Built in high speed processing and positioning.
Control points: maximum 256 points.
Use CC-Link remote I/O for 384 points.
