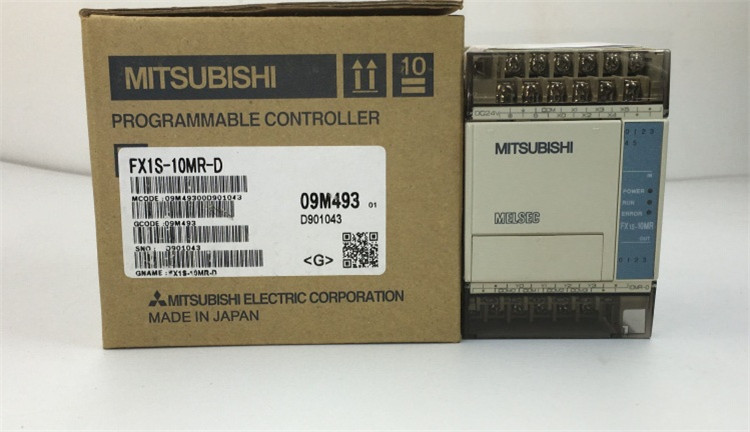

FX1S-10MR-D | MITSUBISHI PLC FX1S-10MR-D
MITSUBISHI FX1S-10MR-D Manual And Instructions
FX1S-10MR-D datasheetPDF datasheet
FX1S-10MR-D PROGRAMMING MANUAL II
FX1S-10MR-D HARDWARE MANUAL
MITSUBISHI FX1S-10MR-D Product information and technical parameters：
Brand: MITSUBISHI
Name: PLC
Model: FX1S-10MR-D
Max input / output points: 10 points.
Power supply voltage: DC24V.
Input points: 6 points.
Output points: 4 points.
Output type: relay.
Power consumption (W): 19.
Weight (kg):0.3.
Size (WxHxD) mm:60x90x75.
Positioning and pulse output functions: a PLC cell can output 2 point 100KHz pulses at the same time.
PLC is equipped with 7 special positioning instructions,
Including zero return, absolute or relative address expression and special pulse output control.
Host has 10 points (6I/4O), 14 points (8I/6O), 20 points (12I/8O), 30 points (16I/14O) of 4 types.
This type of PLC is mainly used in all of the digital input, digital output control point of the device.
Can be directly connected to the 220V city power, built-in 8K step EEPROM memory, no battery, easy to maintain.
The series transistor output (MT) of the PLC, can be output 2 100KHz pulse, direct drive servo or stepper motor.
The series PLC can not be brought with the expansion module, but can be installed by the BD board to extend a small amount of I/O.
The series 1N through the installation of BD series PLC board, can achieve RS232, RS485, RS422 communication.
