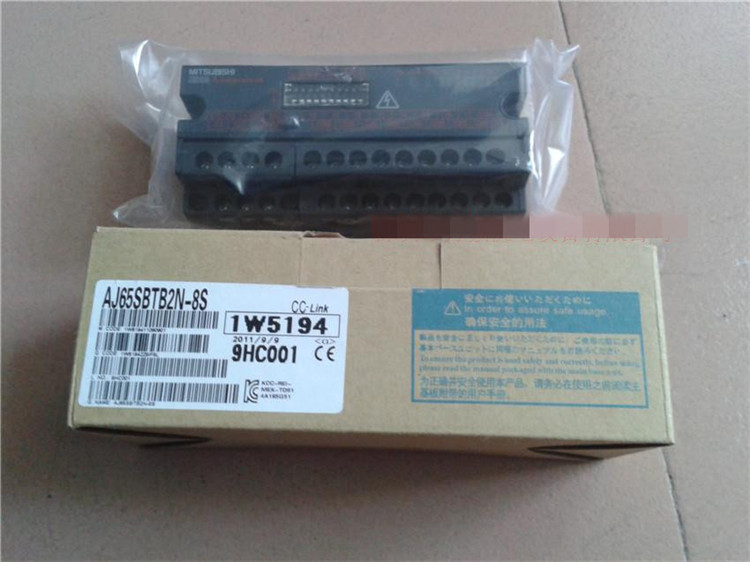

AJ65SBTB2N-8S | MITSUBISHI Silicon controlled output module AJ65SBTB2N-8S
MITSUBISHI AJ65SBTB2N-8S Manual And Instructions
AJ65SBTB2N-8S datasheetPDF datasheet
MITSUBISHI AJ65SBTB2N-8S Product information and technical parameters：
Brand: MITSUBISHI
Name: Silicon controlled output module
Model: AJ65SBTB2N-8S
Output type: bidirectional thyristor output.
Output points: 8 points.
OFF leakage current: 1.5mA following (AC100V) below /3mA (AC200V).
Output protection function: No.
Rated load voltage / current: AC100V~240V/0.6A.
External connection: 2 wire.
According to the external connection mode and the external equipment input and output specifications,
Choose from a rich product lineup.
Finger protection through the upper part of the terminal,
The human body will not be exposed to live parts,
Therefore, the terminal station type remote I/O module can be directly mounted to the machine tool.
