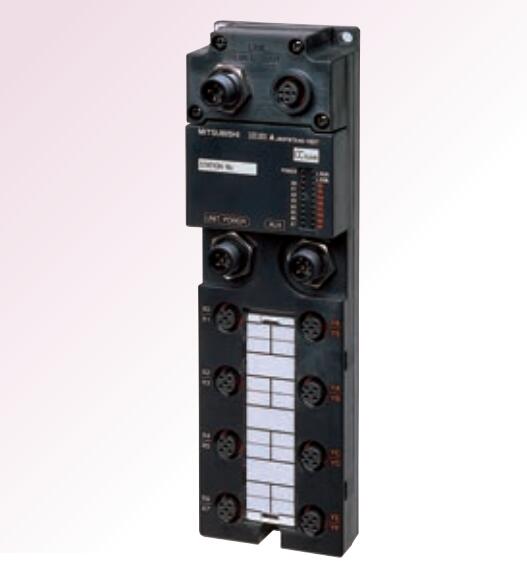

AJ65FBTA2-16TE | MITSUBISHI Waterproof connector type transistor output module AJ65FBTA2-16TE
MITSUBISHI AJ65FBTA2-16TE Manual And Instructions
AJ65FBTA2-16TE datasheetPDF datasheet
MITSUBISHI AJ65FBTA2-16TE Product information and technical parameters：
Brand: MITSUBISHI
Name: Waterproof connector type transistor output module
Model: AJ65FBTA2-16TE
Output type: transistor output, source.
Output points: 16 points.
OFF leakage current: 0.30mA.
Output protection function.
Rated load voltage / current: DC12V/DC24V/0.1A.
External connection: 2 wire.
Waterproof connector type.
Strong waterproof type of IP67 protection grade.
No need to stop the system can be replaced module.
Without the use of tools can be a simple connection, save time.
Terminal resistor built-in.
Can be installed along the 6 direction.
Hardware simulation method is to use a number of hardware equipment to simulate the generation of the signal,
The signals are connected to the input end of the PLC system in a hard wired way, and the timeliness is strong.
Software simulation method is in the MITSUBISHI PLC in the preparation of a set of simulation program,
The simulation provides the field signal, which is simple and easy to operate, but it is not easy to guarantee the timeliness.
Simulation of the process of debugging, debugging method can be used to segment, and the monitoring function of programmer.
