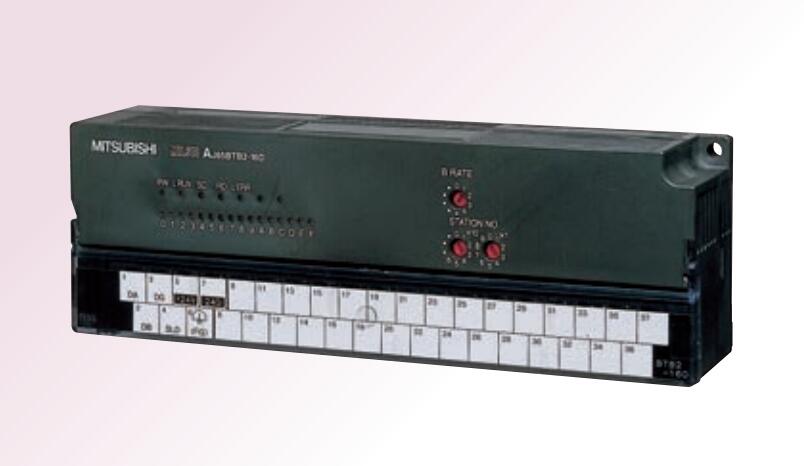

AJ65BTB2-16DT | MITSUBISHI DC input / transistor output module AJ65BTB2-16DT
MITSUBISHI AJ65BTB2-16DT Manual And Instructions
AJ65BTB2-16DT datasheetPDF datasheet
MITSUBISHI AJ65BTB2-16DT Product information and technical parameters：
Brand: MITSUBISHI
Name: DC input / transistor output module
Model: AJ65BTB2-16DT
Input type: DC input, positive common end.
Input points: 8 points.
Enter the response time: 10ms the following.
Rated input voltage / current: DC24V/7mA.
Output form: transistor output, leakage type.
Output points: 8 points.
OFF leakage current: 0.1mA.
Output protection function: No.
Rated load voltage / current: DC12V/DC24V/0.5A.
External connection: 2 line /2 line type.
Type of input and output terminal.
Using 2 pieces of structure of the terminal units, maintenance can be maintained in the same line under the condition of the replacement module.
