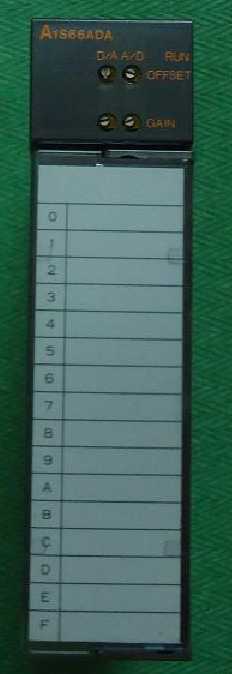

A1S66ADA | MITSUBISHI Analog input / output module A1S66ADA
MITSUBISHI A1S66ADA Manual And Instructions
A1S66ADA datasheetPDF datasheet
A1S66ADA HardwareUser's Manual
A1S66ADA User's Manual
MITSUBISHI A1S66ADA Product information and technical parameters：
Brand: MITSUBISHI
Name: Analog input / output module
Model: A1S66ADA
Input channel number: 4.
Output channel number: 2.
Occupy I/O points: 64.
A1S63ADA analog input / output combination components can be analog / digital / digital / analog conversion,
The input and output signals can be voltage or current,
Offset and gain can be set and stored.
The length of time required to execute the instruction, the length of the user''s program, the type of instruction, and the speed of the CPU execution are very significant,
Generally, a scanning process, the fault diagnosis time,
Communication time, input sampling and output refresh time is less,
The execution time is accounted for the vast majority of.
The response time of PLC is the interval between the time of the change of the external output signal of the PLC and the time of the change of the external output signal which is controlled by it,
Lag time, this is the time constant of the input circuit,
The time constant of the output circuit, the arrangement of the user statement and the use of the instruction,
The cycle scan mode of PLC and the way of PLC to refresh the I/O and so on.
This phenomenon is called the I/O delay time effect.
