Superior high efficiency IPM motor.
Output power: 0.75kw.
Rated speed: 1500r/min.
Voltage level: 200V.
IPM motor MM-EFS series can not be used to run the power frequency power.
The total wiring length of the IPM motor shall not exceed 100m.
1 inverters can not connect multiple IPM motors at the same time. Cable length: 3m.
For MR-J2S-11KA (4) MR-J2S-22KA to (4). 10BASE5/10BASE2

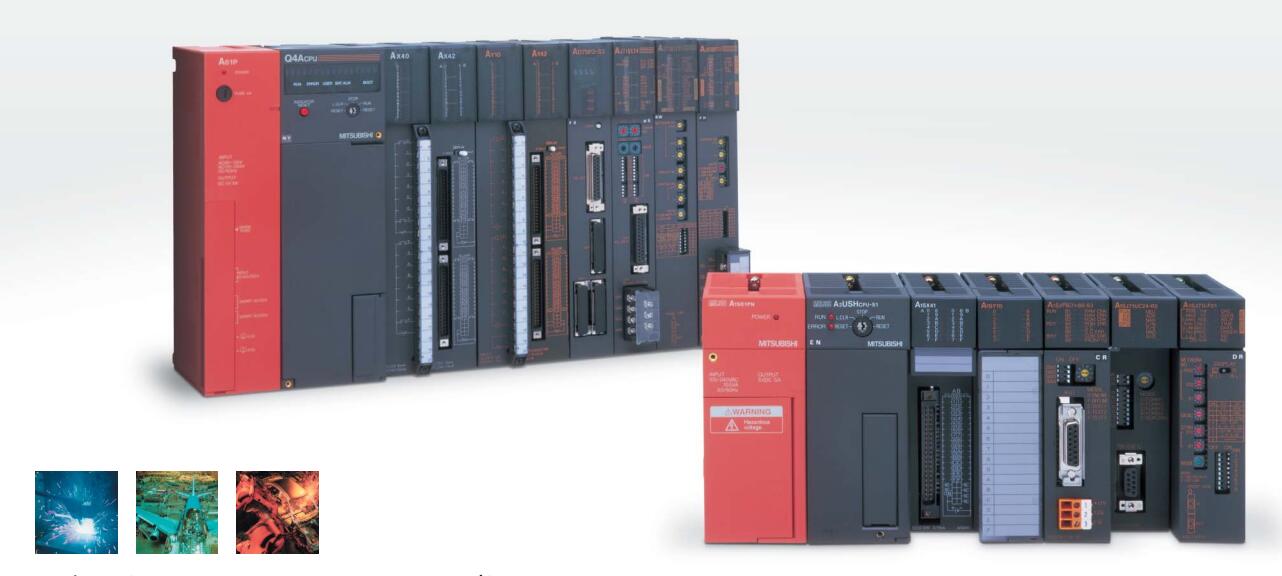

When communicating in the PLC network of MITSUBISHI,
There is no sense of difference and discontinuity in the network,
Can carry on the remote monitoring, modification, debugging and other work of data communication and program,
Without taking into account the level and type of network AJ71LP21GE
MELSECNET/H and CC-Link use the way of loop communication,
Periodically automatically send and receive messages,
Does not require specialized data communication procedures,
Simple parameters can be set.
MELSECNET/H and CC-Link are used to transmit and receive the broadcast mode,
This can be done on the network data sharing.
For the use of Ethernet, MELSECNET/H, CC-Link network,
Can set the network parameters and various functions, simple and convenient in the Developer GX software screen. Can be isolated to obtain DC24/48/100V, AC100/200V input signal.Cable length: 20m.
The connection between the FXCPU (MINI-DIN8 pin connector) and the graphic operation terminal.
Connection between FXCPU communication function extension board (MINI-DIN8 pin connector) and GOT.
Applicable models: GT10, GT21. Superior high efficiency IPM motor.
Output power: 7.5kw.
Rated speed: 1500r/min.
Voltage level: 400V.
IPM motor MM-EFS series can not be used to run the power frequency power.
The total wiring length of the IPM motor shall not exceed 100m.
1 inverters can not connect multiple IPM motors at the same time. Function: high performance and low price in the middle end model.
Picture size: 10.4 inches.
Resolution: SVGA.
Display: TFT color.
Panel color: black.
Power type: AC100~240V.
Communication interface: CC-Link IE network communication module set.
The highest level model with multi touch and gesture features.
Specification rich, design at ease.
GT27 standard supports SD memory card and standard equipped with Ethernet, RS-232, RS-422/485, host/device USB interface.
Even in the log, script, alarm, soft component data transmission, such as high load processing period, but also to achieve smooth operation of the screen.
In addition, also supports video, animation playback, video input and RGB input and output, can use all the features of GOT2000.
Can be programmed CPU and other procedures, parameters, such as data storage (backup) to the SD GOT memory card, USB memory.
When the programmable controller fails, batch write back (recovery) program.
1, the human body sensor
People will be able to automatically detect and display the picture.
2, USB interface: device USB (Mini-B USB)
Can connect to the computer to transfer data.
3, USB interface: host USB (USB-A)
GOT data can be transmitted through the USB memory or read log data and other data,
Can also be connected to the USB mouse, keyboard use.
4, the extension of the interface
Communication module and optional module can be installed.
5, Ethernet interface
Up to 4 different manufacturers can be connected to the FA machine.
6, RS-232 interface
Can connect all kinds of FA machine, bar code reader, serial printer.
7, RS-422/485 interface
Can be connected to a variety of FA machines, bar code reader.
8, SD memory card slot
Can save alarm and log data, such as a large number of data.
AJ71LP21GE Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=AJ71LP21GE&select=5
