"Maximum control axis: 16 axis.
Connection mode with servo amplifier: IE CC-Link field network connection type.
The maximum distance between the drive units: 100m.
Operation cycle: 0.88ms, 1.77ms, 3.55ms.
Interpolation function: linear interpolation (maximum 4 axis), 2 axis arc interpolation.
Color signal: 4 points.
Color detecting set: 16 set.
Motion control into CC-LinkIE network.

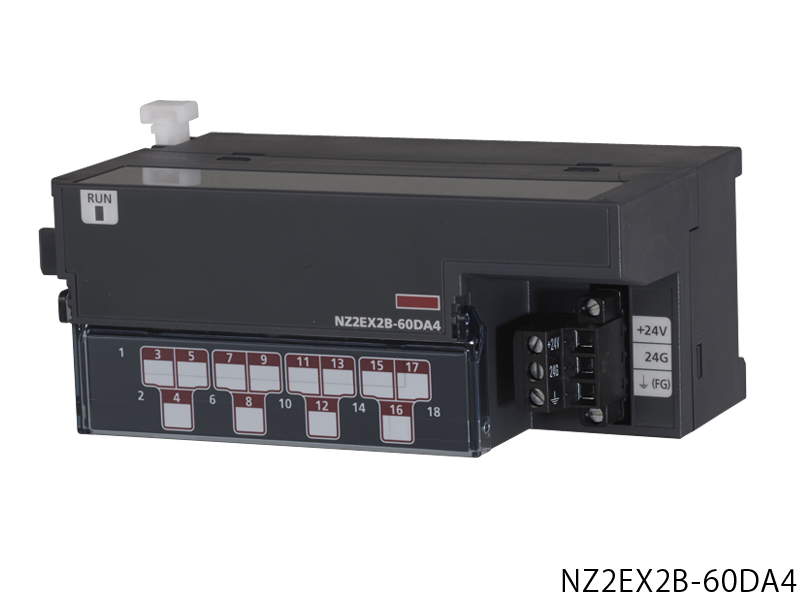

Positioning control, synchronization control and cam control can be easily carried out by the simple parameter setting and the starting of the sequential program NZ2EX2B-60DA4
QD77GF can be used as the main station of CC-LinkIE network.
Communication between 1 network implementation and servo amplifier, field device (remote I/O, sensor, etc.).
Note 1:QD77G only the master station can use the bus shape, star. 1 networks can connect up to 104 units from the device.
Even the long distance wiring can be flexible.
The use of fiber optic cable, with high speed, high performance, high reliability of the servo system controller network.
In addition to the traditional positioning control, but also to support speed / torque control and synchronous control.
Use simple movement module setup tool",
Can easily perform positioning settings, monitoring and debugging, etc..
In addition, the data can be collected and displayed synchronously with the motion controller.
Support comprehensive, wiring flexible IE CC-Link field network.
This module can be used as the main station of IE CC-Link field network (equivalent to QJ71GF11-T2),
And still retains the function of simple motion module.
Therefore, flexible connection display (GOT), remote I/O, frequency converter and other equipment, flexible construction system. "32 point connector for compression connector (37 pin D-sub connector).1 axis servo amplifier.
MITSUBISHI general AC servo amplifier MELSERVO-J4 series.
Rated output: 1.0kw.
Interface: General purpose.
Power supply: three phase AC200V.
Special specification: full closed loop control 4 wire / device end encoder ABZ phase input corresponding support function security unit, support positioning mode.
Servo amplifier supporting universal interface.
Servo amplifier for universal interface.
Speed / torque control of position control and analog voltage command can be carried out by using pulse train command.
Support Max instruction pulse frequency 4 Mpulses/s.
2 low frequency vibration can be suppressed at the same time by supporting the seismic algorithm of 3 inertial equipment.
Configurator2 MR to achieve convenient adjustment.
Effectively restrain the low frequency aftershock effect produced by the front end of the boom or the main body of the device 100Hz.
Can effectively shorten the time to control the stability of the aftershock.
In the XY design of trajectory control, improve the accuracy of arc track.
At the same time, it can effectively control the phenomenon of quadrant protrusion caused by the rotation direction of the servo motor, which is caused by friction and twisting.
NZ2EX2B-60DA4 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=NZ2EX2B-60DA4&select=5
