2 channel.
Differential input: 40kpps/400kpps/800kpps/2Mpps/4Mpps/8Mpps.
Count input signal: EIA standard RS-422-A (differential line driver).
DC input: 10kpps/100kpps/200kpps.
Count input signal: DC5/12/24V 7 ~ 10mA.
External output: DC24V.
Consistent output: Transistor (drain), DC12/24V, 0.1A/ point, 0.8A/ common.
40 pin connector.
Multifunctional counting / timing module (QD65PD2)
Very precise positioning and tracking AJ35PT-OPB-M1
Maximum count rate of up to 8Mpps (differential input 4 phase 2 frequency multiplication), is 2 times in the past.
Multifunctional and convenient use!
Pulse measuring function... Measurement resolution of 100ns, can be performed with high precision pulse measurement.
PWM output function... Configuration of the maximum 200 PWM kHz output function. Available 0.1 s single
Bit change duty cycle, to achieve ultra precise output control.
Cam switching function... The output of the 8 points, 16 step / output cam switch.
High precision timing control can be realized by cam switch.
Complete complex control using a consistent test!
Uniform output function... Can provide support for complex applications.
According to the specific circumstances, choose to use the cam switch function or the same output function.PCI bus.
Support Japanese, English OS.
GI optical cable.
Dual loop controller network (control station / common station).
I/O control in the first class of open field network module.
CC-Link based on reliable field bus technology,
Able to transmit large number of bits data (such as ON/OFF information) and word data (such as analog information).
Consistency of CC-Link to maintain loop transmission,
And the cycle of transmission and information (instantaneous transmission) communication separately, so as to ensure the timeliness of.
Even if the information reaches saturation, it will not affect the link scan time.

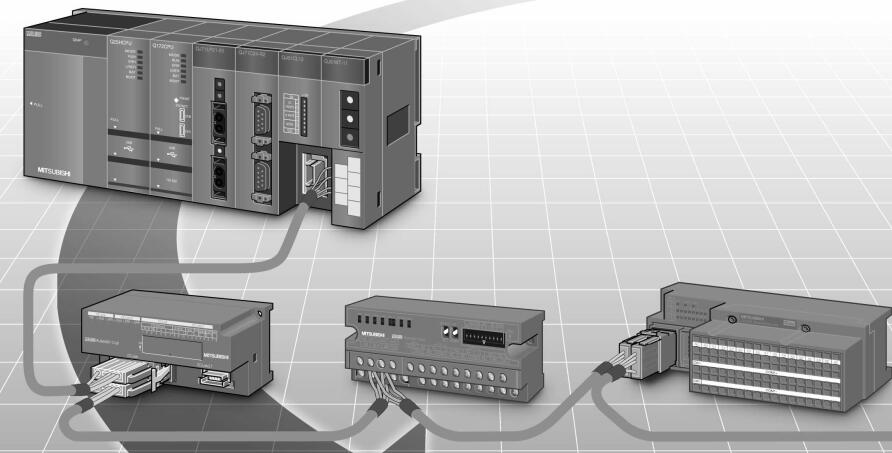

DB A20 AnyWire system uses a separate transmission mode,
Sensor networks to achieve high speed and high reliability.
The transmission distance of 50m/200m/1km/3km can be selected.
1 modules can be up to 512 points of the input, 512 points of output (standard setting).
Even branch wiring, but also to detect transmission lines.
AJ35PT-OPB-M1 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=AJ35PT-OPB-M1&select=5
